✓ Apple MFi (Made for iPhone/iPod/iPad) Certified for direct connection to any iOS device without the need for any additional adapters or connection kits. ✓ Discreet JFET Class A buffered instrument preamplifier input for exceptional tone and clarity ✓ Supplies 12-48v phantom power (12v – iOS / 48v – USB) ✓ 5 DSP Preset Modes (Speech, Singing, Flat, Acoustic Instrument, Loud) | Automatically adjusts EQ, Compression and Limiting for polished results ✓ Front Panel Touch Controls for mode selection, headphone volume, microphone gain, and mute ✓ Built In Headphone Output for real-time monitoring ✓ XLR – ¼” Combo Jack connects XLR microphone or ¼” plug guitar/bass/keyboard ✓ All-Metal Construction designed, built and rigorously tested by Shure

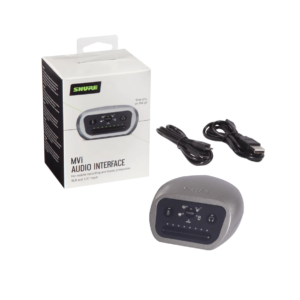

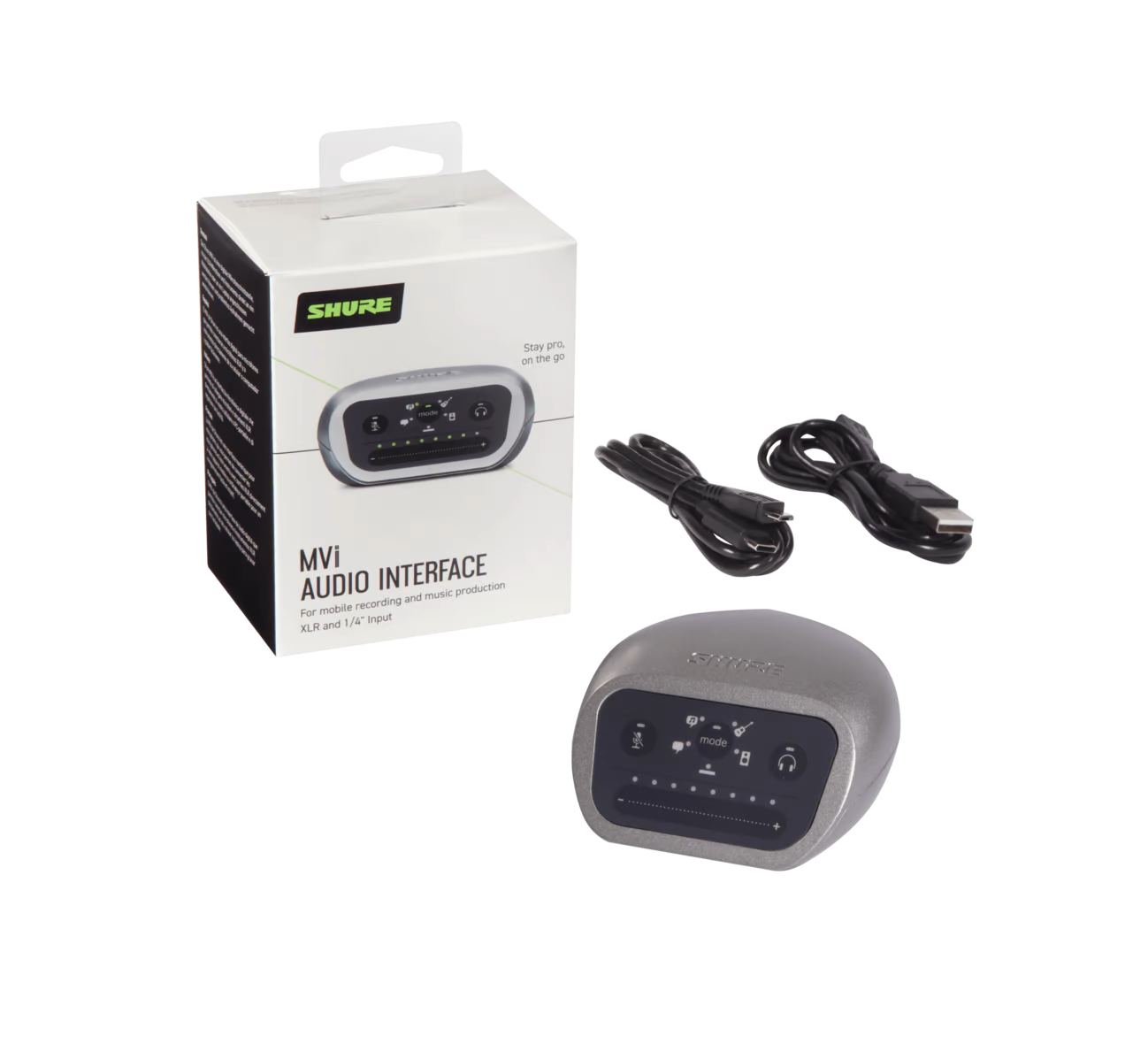

WHAT’S IN THE BOX:
1x Shure MVI Digital Audio Interface
1x MicroB-to-USB Cable
1x Micro-B to Lightning cable included with –LTG sku variants
Transducer Type : Condenser
Polar Pattern: Cardioid
Frequency Response from: 20 Hz
Frequency Response to: 20 KHz
Weight: 310 g
MFi Certified
Yes
DSP Modes (Presets)
Speech/Singing/Acoustic/Loud/Flat
Input
Combination XLR and 6.35 mm TRS
Input Impedance
3-pin XLR: >2 kΩ
6.3mm TRS: >1 MΩ
Bit Depth
16-bit/24-bit
Sampling Rate
44.1/48 kHz
Frequency Response
at minimum gain, flat mode
20 Hz to 20,000 Hz
Adjustable Gain Range
3-pin XLR: 0 to +36 dB
6.3mm TRS: +9 dB
Maximum Input Level
3-pin XLR: 0 dBV
6.3mm TRS: +9 dBV
Headphone Output
3.5 mm
Power Requirements
Powered through USB or Lightning connector
Phantom Power
USB: +48 VDC
iOS: +12 VDC
Input Mute
Yes
Housing
All-metal construction
Net Weight
310 g
Cable
1 m. Micro-B-to-USB cable
1 m. Micro-B-to-Lightning cable
System Requirements
Windows: Windows 7, Windows 8; 64 MB minimum RAM; USB 2.0
Macintosh: OSX Lion 10.7, OSX Mountain Lion 10.8, OSX Mavericks 10.9, OSX Yosemite 10.10; 64 MB minimum RAM; USB 2.0; iOS 7.0 and higher: iPhone 5, iPhone 5c, iPhone 5s, iPhone 6, iPhone 6 Plus; iPod touch 5th generation; iPad 4th generation, iPad Air, iPad Air 2; iPad Mini 1st generation, iPad Mini 2nd generation, iPad Mini 3rd Generation
